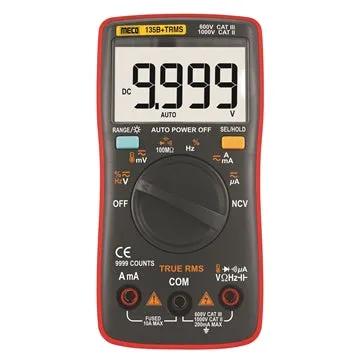

The Meco 135B TRMS Digital Multimeter is a compact, pocket-size instrument offering precision and versatility for professionals and DIY users. With True RMS (TRMS) capability, auto/manual ranging, and comprehensive measurement ranges including temperature and NCV detection, it is ideal for fieldwork, electrical troubleshooting, and maintenance applications.
Key Features:
- 4 Digit Display: Provides accurate readings with 9999 counts resolution.
- True RMS (TRMS) Measurement: Ensures precision with both linear and non-linear loads.
- Auto/Manual Ranging: Automatically selects the range or allows manual control.
- DC Voltage Measurement: Up to 999.9V.
- AC Voltage Measurement: Up to 750.0V.
- DC/AC Current Measurement: Up to 9.999A.
- Resistance Measurement: Measures up to 99.99MΩ.
- Capacitance Measurement: Supports measurements up to 9.999mF.
- Frequency Measurement: Measures up to 9.999MHz.
- Duty Cycle Measurement: 1% to 99% for signal diagnostics.
- Temperature Measurement: Supports readings up to 260°C with K-type thermocouple.
- NCV Detection: Non-contact voltage detection for safe handling of live circuits.
- Diode Test & Audible Continuity: Test diodes and check continuity with audible feedback.
- Data Hold Function: Freeze readings for documentation.
- Backlit LCD Display: Ensures easy visibility even in low-light conditions.
- Auto Power Off: Conserves battery life by turning off automatically when idle.
- Low Battery Indication: Alerts the user when the battery needs replacement.
- Display: 4 digits, 9999 counts
- DC Voltage: Up to 999.9V
- AC Voltage: Up to 750.0V
- DC/AC Current: Up to 9.999A
- Resistance: Up to 99.99MΩ
- Capacitance: Up to 9.999mF
- Frequency: Up to 9.999MHz
- Duty Cycle: 1% ~ 99%
- Temperature: Up to 260°C with K-type thermocouple
- Test Leads – 1 Pair
- 1.5V 'AAA' Batteries – 2 Pcs (Pre-installed)
- Instruction Manual – 1 Pc
- K-Type Thermocouple (Up to 260°C) – 1 Pair
- Drawstring Pouch – 1 Pc
