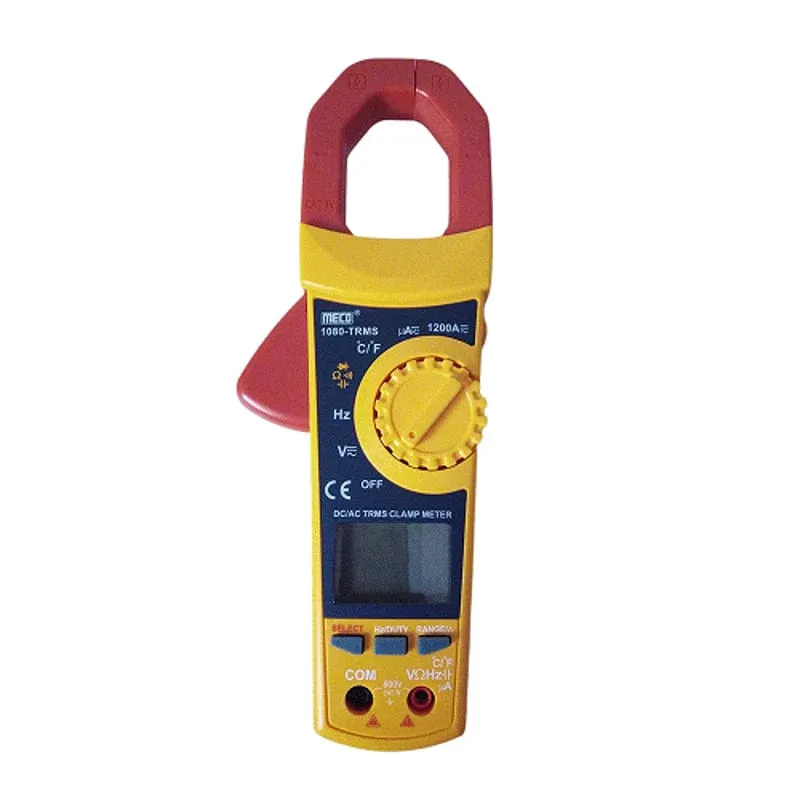

The Meco 1080-TRMS is a versatile digital clamp meter designed for accurate measurement of both AC and DC currents up to 1200A. Its True RMS (TRMS) capability ensures precise readings, even with non-linear waveforms, making it suitable for various electrical applications.

Key Features:

• True RMS Measurement: Provides accurate readings for AC signals, including those with non-linear waveforms.
• Auto/Manual Ranging: Offers flexibility in selecting measurement ranges, enhancing user convenience.
• Comprehensive Measurement Functions:
  • AC/DC Current: Measures up to 1200A.
  • AC/DC Voltage: Measures up to 750V AC and 1000V DC.
  • Resistance: Measures up to 60MΩ.
  • Capacitance: Measures up to 9.999mF.
  • Frequency: Measures up to 10MHz.
  • Duty Cycle: Measures from 0.1% to 99.9%.
  • Temperature: Measures from -20°C to 1000°C using a K-type thermocouple.
• Additional Features:
  • Diode Test and Audible Continuity: Facilitates quick component and circuit checks.
  • Data Hold Function: Allows users to freeze the current reading on the display for convenient recording.
  • Backlit LCD Display: Ensures clear visibility in low-light conditions.
  • Auto Power Off (APO): Conserves battery life by automatically turning off after a period of inactivity.
  • Low Battery Indication: Alerts users when the battery needs replacement.
• Jaw Opening: Accommodates conductors up to 30mm in diameter, suitable for various cable sizes.

Specifications:

• Display: 3⅚-digit LCD with 6000 counts.
• AC Current Range: 600µA to 1200A.
• DC Current Range: 600µA to 1200A.
• AC Voltage Range: 600mV to 750V.
• DC Voltage Range: 600mV to 1000V.
• Resistance Range: 0 to 60MΩ.
• Capacitance Range: 9.99nF to 9.999mF.
• Frequency Range: 99.99Hz to 10MHz.
• Duty Cycle Range: 0.1% to 99.9%.
• Temperature Range: -20°C to 1000°C.
• Power Supply: One 9V battery.
• Battery Life: Approximately 200 hours of typical use.
• Dimensions: Approximately 238 x 90 x 48 mm.
• Weight: Approximately 320 grams, including battery.

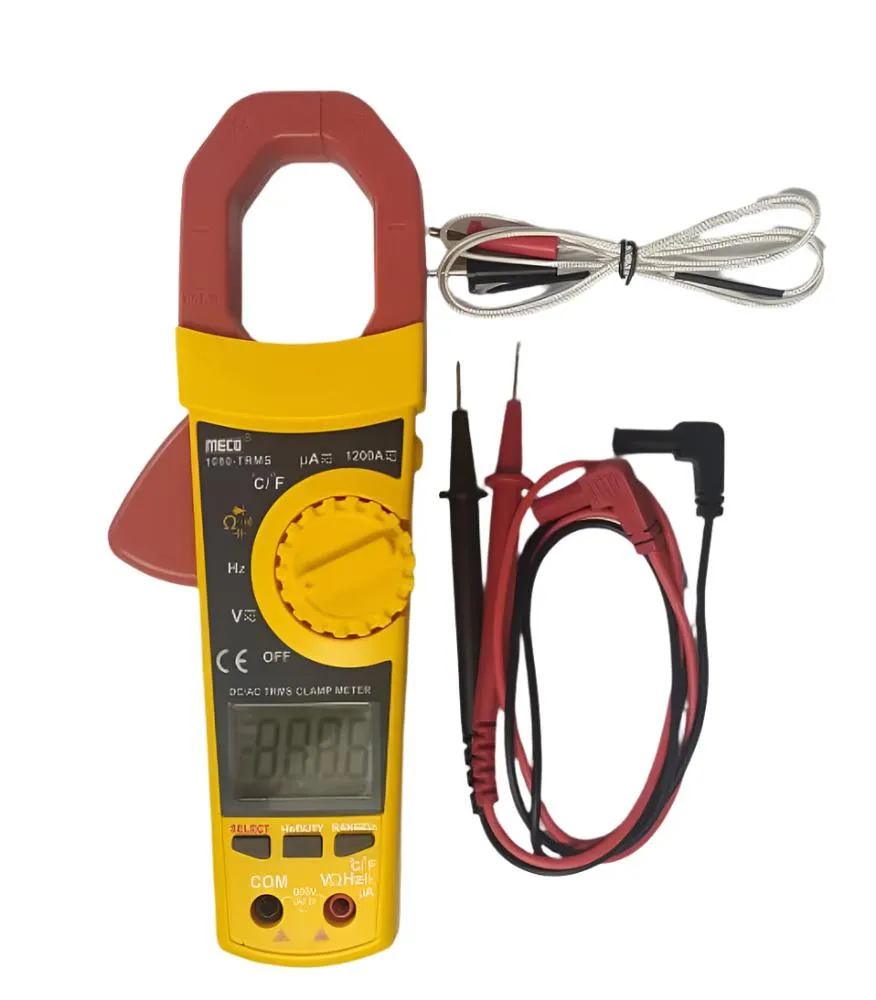

Included Accessories:

• One pair of test leads.
• 9V battery (installed).
• K-type thermocouple (up to 260°C).
• Instruction manual.
• Carrying case.

Applications:

• Electrical Maintenance: Ideal for troubleshooting and maintaining electrical systems in industrial, commercial, and residential settings.
• HVAC Systems: Useful for monitoring current and voltage in heating, ventilation, and air conditioning equipment.
• Power Distribution: Assists in evaluating current flow in power distribution networks.
• Automotive Diagnostics: Aids in diagnosing electrical issues in vehicles.
